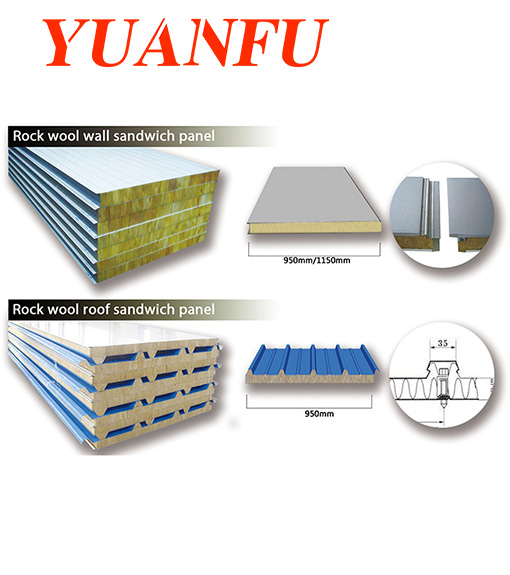

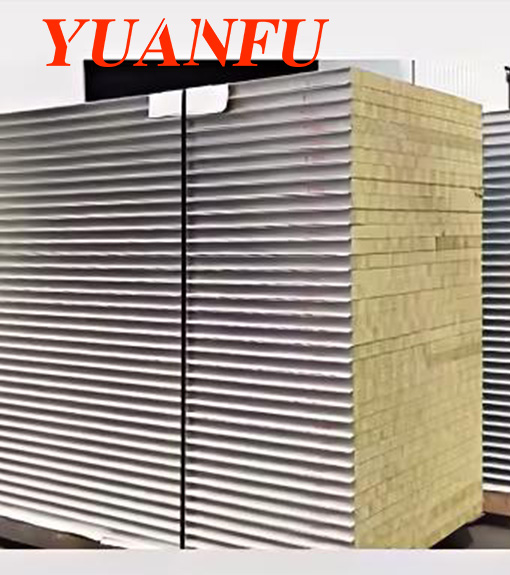

Rock wool sandwich panel

Rockwool sandwich panels are sandwich panels made of rockwool. Rockwool sandwich panels give full play to the unique properties of rockwool core materials and have significant effects in fire prevention, heat preservation, sound absorption, etc. They are suitable for roofs, walls, ceilings, and partitions of steel structure workshops and simple mobile houses. In order to increase the strength of rockwool sandwich panels and achieve the diversity of connection methods, polyurethane is often used as edge sealing to form polyurethane edge-sealed rockwool sandwich panels.

Send Email

Chat Now

Share With:

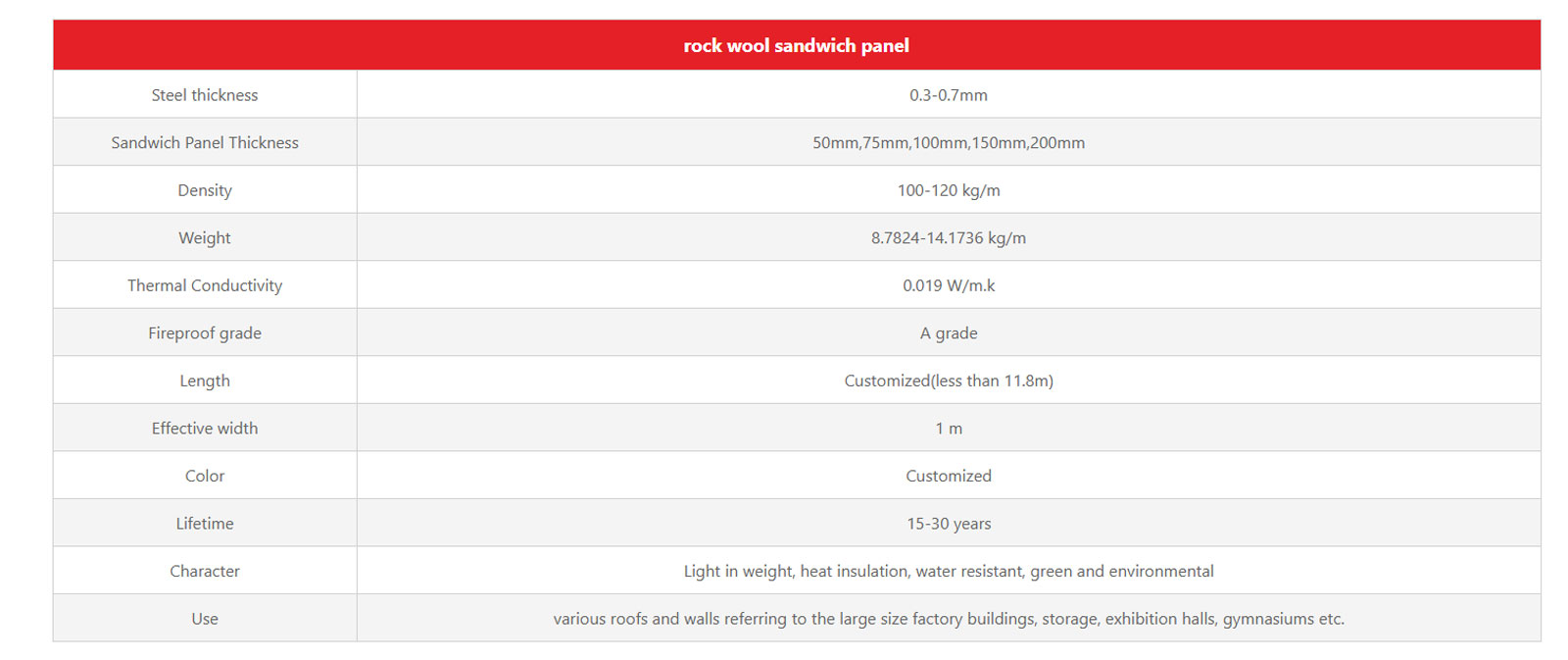

Parameters

Rock wool sandwich panel (50/75/100/150/200mm)

Rock wool thickness: 50/75/100/150mm Color steel thickness: 0.3-0.8mm,

Rock wool density: 100kg-160kg/m³ Fire rating: A2 (fire resistance 150 minutes)

Width: 1000mm Air tightness: ≥90%

Thermal conductivity: ≤0.045W/(m∙K) Oxygen index: ≥23.7%

Rock wool sandwich panel color selection: The common colors of rock wool sandwich panels are as follows. If you need other colors, we can customize them for you.

As a new material in structure, the rock wool sandwich panel has been the most suitable choice for many users. The characters of rock wool roof panel are heat insulation, waterproof, soundproof, and easy to install. The excellent function is the reason that so many people choice.

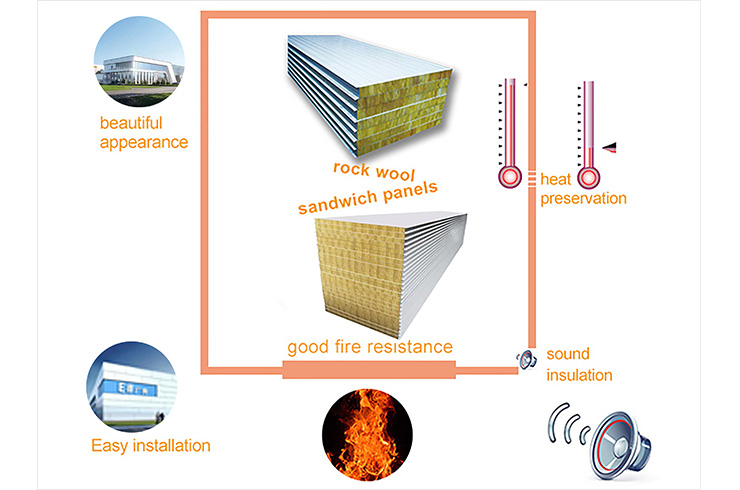

Advantages

1. Excellent fire resistance: As its raw material is rock wool ,it has good fireproof performance.

2. Good thermal insulation: its insulation is according to its thermal conductivity at 0.036 corresponding the thickness of rock wool.

3. The effect of sound absorption and heat insulation is remarkable.

Sound insulation: According to ISO 717/82 and UNI 8270/7 standard, Density of 120kg/m³ rock wool as core material, the sound insulation effect can reach RW=29-30 dB.

Sound absorption: rock wool sandwich panels have excellent attraction at the same time, which can absorb sound in a wide range of frequencies. According to the ISO 35/85 standard.

4. Resistance to corrosion, deformation and breaking.

5. Long service life and strong aesthetics.

Installation

1. First of all, it must carry on the construction preparation before installation, include personnel, materials, etc. All will be well prepared.

2. Before the installation of sandwich panel, it should check whether the verticality and levelness of metope purlin installation requirements, wall frame column vertical degree meets the requirement.

3. Before installation sandwich panel, it should first mounting plate bottom water retaining plate and the bottom of the window to block water board, water retaining plate and wall frame beam connection with self tapping screw fixation.

4. Sandwich Panel links with ground.

Lateral links: fixed sandwich panel with the ground at the other end of the round hole with steel frame fixed, connection between the two plate mouth involution, if occurrence crack of the connectors available heat preservation to fill.

Vertical links: the gap between plates, using the dedicated button concave groove in the fixed sandwich panel.

Application

Rock Wool Sandwich Panel are applied as external walls and internal division walls, installed vertically or horizontally on single- or multi-span structure / Industrial buildings / store houses and logistic centers / commercial buildings and offices / food industry facilities / agricultural objects / sport halls.
